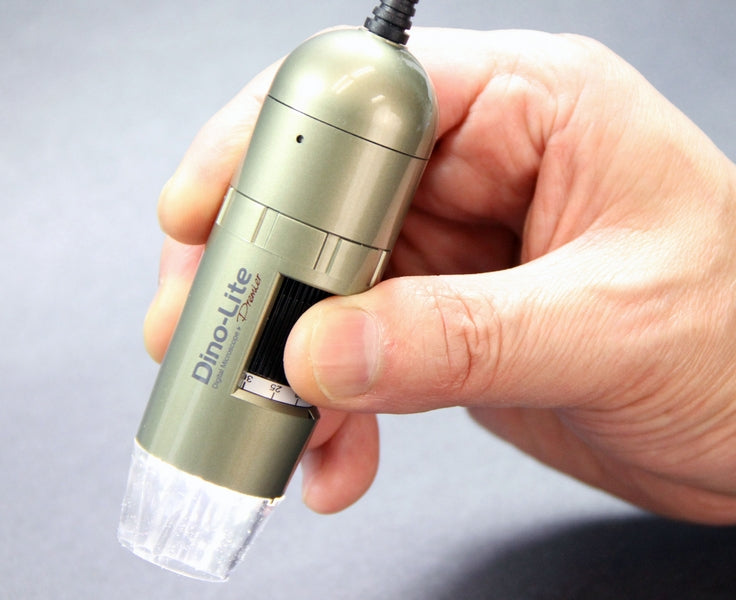

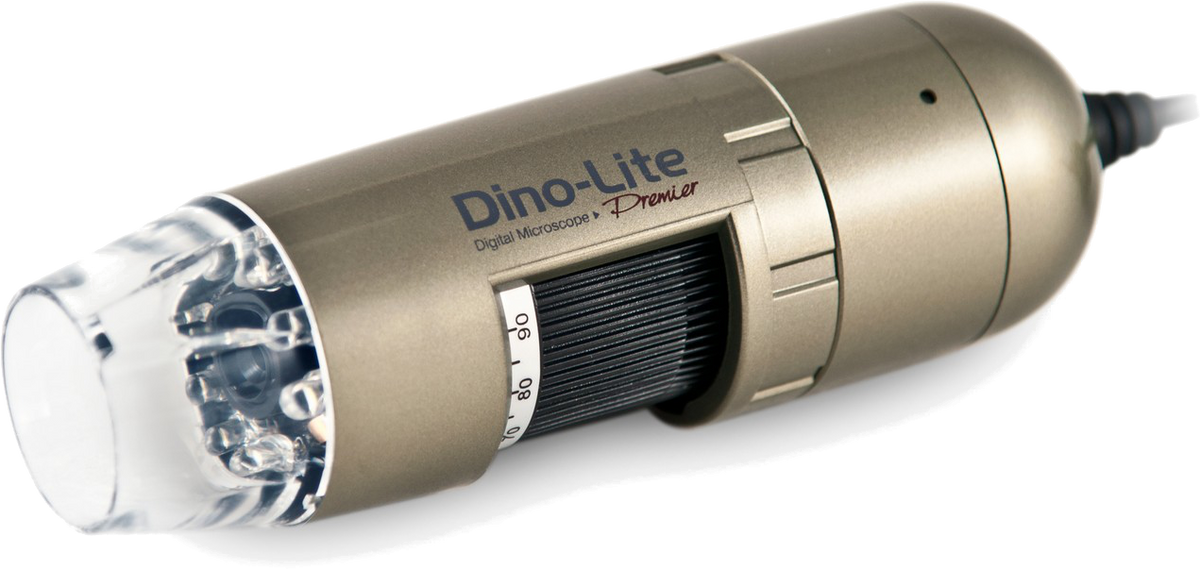

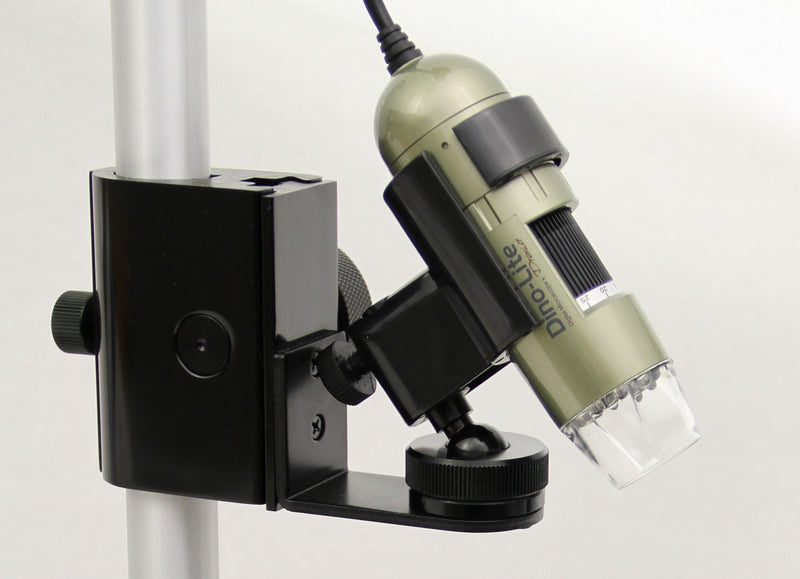

AM4113TL

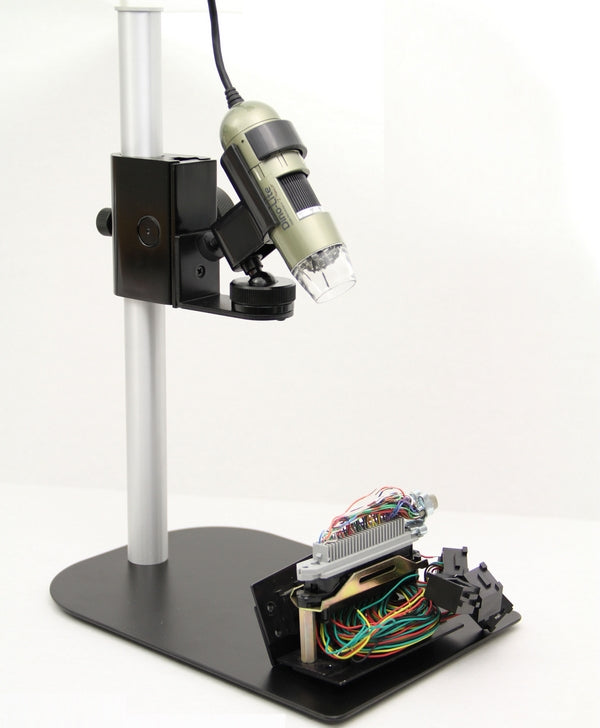

De AM4113TL is een speciaal model met lange afstands werkbereik tot 15 cm bij 20x vergroting en ongeveer 4cm bij 90x vergroting. De extra werkafstand maken de TL serie geschikt voor werkzaamheden waarbij meer werkafstand tot het object nodig is. Hierbij valt te denken aan het repareren of assembleren van kleine (elektronica) onderdelen.

ADDITIONAL INFO

• DETAILS

• Dino-Lite range:
  Dino-Lite Long Working Distance

• LIGHTING

• Light/ LED type:
  White
• Number of LEDs:
  8
• LED on/off switchable:
  Yes
• Infrared filter:
  IR cut-filter >650 nm
• Diffuser available:
  MSAA111A1 (optional accessory)
• Emission filter:
  No
• Polarizer:
  No

• OPTICS

• Magnification:
  10-90x
• Macro zoom:
  No
• Working distance:
  Long
• Lens type:
  Glass with anti-reflection coating

• SENSOR

• Sensor type:
  CMOS
• Resolution:
  1.3 Megapixel (1280x1024)
• Maximum frame rate:
  30 fps

• COMPATIBILITY

• Interface:
  USB 2.0
• Operating system:
  Windows XP, Vista, 7, 8 & 10, MacOS 10.4 and up
• Included software:
  DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Supported image formats (Windows):
  BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows):
  WMV, FLV, SWF
• Supported image formats (MacOS):
  JPEG, PNG
• Supported video formats (MacOS):
  MOV
• Imaging standards:
  DirectShow, UVC

• HOUSING

• Housing material:
  Composite/ plastic housing
• Magnification lock:
  Yes
• Dimensions:
  10.5cm (L) x 3.2cm (D)
• Weight:
  105g
• Cable length:
  1.8m

• FEATURES

• Special feature:
  No
• Measurement:
  Yes
• Calibration:
  Yes
• Microtouch sensor:
  Yes
• ESD safe:
  No

• INFORMATION

• Package contents:
  Microscope, Carry pouch, Software CD, Calibration target, User manual
• Regulatory approval:
  CE, FCC, ROHS
• Working distance/ field of view/ depth of field:

  Magnification Rate	Working Distance	Field of View(x)	Field of View(y)	Depth of Field
  Listed values may differ slightly				Unit = mm
  20	160.5	19.8	14.9	6
  30	110.4	13.2	9.9	3.4
  40	86.7	9.9	7.4	2.2
  50	73.6	7.9	5.9	1.65
  60	65.7	6.6	5.0	-
  70	60.8	5.7	4.2	-
  80	57.8	5.0	3.7	-
  90	56.1	4.4	3.3	0.8
